1. Equipment Introduction

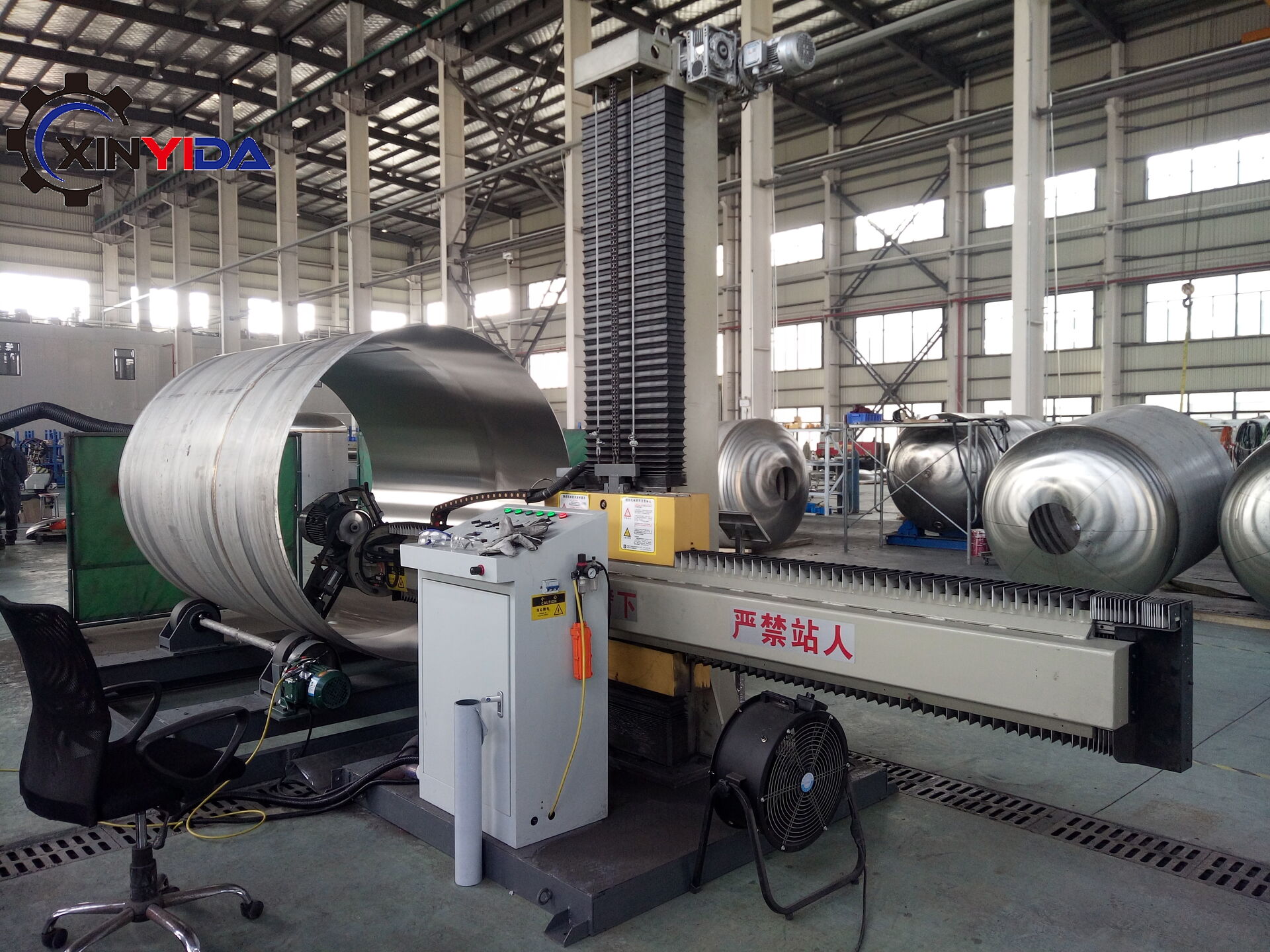

This machine adopts a cross structure design with beam and column.
A tank polishing grinding head is mounted on the front end of the beam, and the system is equipped with a heavy-duty workpiece turning roller table.

By controlling the X / Z axis movement, the machine performs automatic polishing on the inner surface, outer surface, and welding seams of tank shell / cylindrical workpieces.

Combined with different abrasive process solutions, the machine can gradually reduce the surface Ra roughness value, meeting finishing requirements from rough grinding to mirror polishing.

2. Control System (Optional)

• Semi-automatic Control
  Manual operation via control knobs, frequency inverter speed regulation.
• China PLC + Touch Screen
  Servo driven X/Z axis. Input start & end coordinates on HMI to complete polishing automatically.
• Siemens PLC + Siemens HMI
  High-stability automation control with coordinate input automatic grinding.
• Siemens CNC Control System
  Automatic polishing solution through preset polishing paths for complex trajectories.

3. Machine Features

• Abrasives: Abrasive belt & flap wheel, interchangeable according to process needs.
• Multiple control modes, adjustable speed, high flexibility.
• Surface finishing: Hairline / Matt / Bright / Mirror.
• High automation, continuous and uniform polishing.
• High efficiency: up to 10–12 ㎡ / hour.
• Excellent surface consistency.
