1. Product Overview

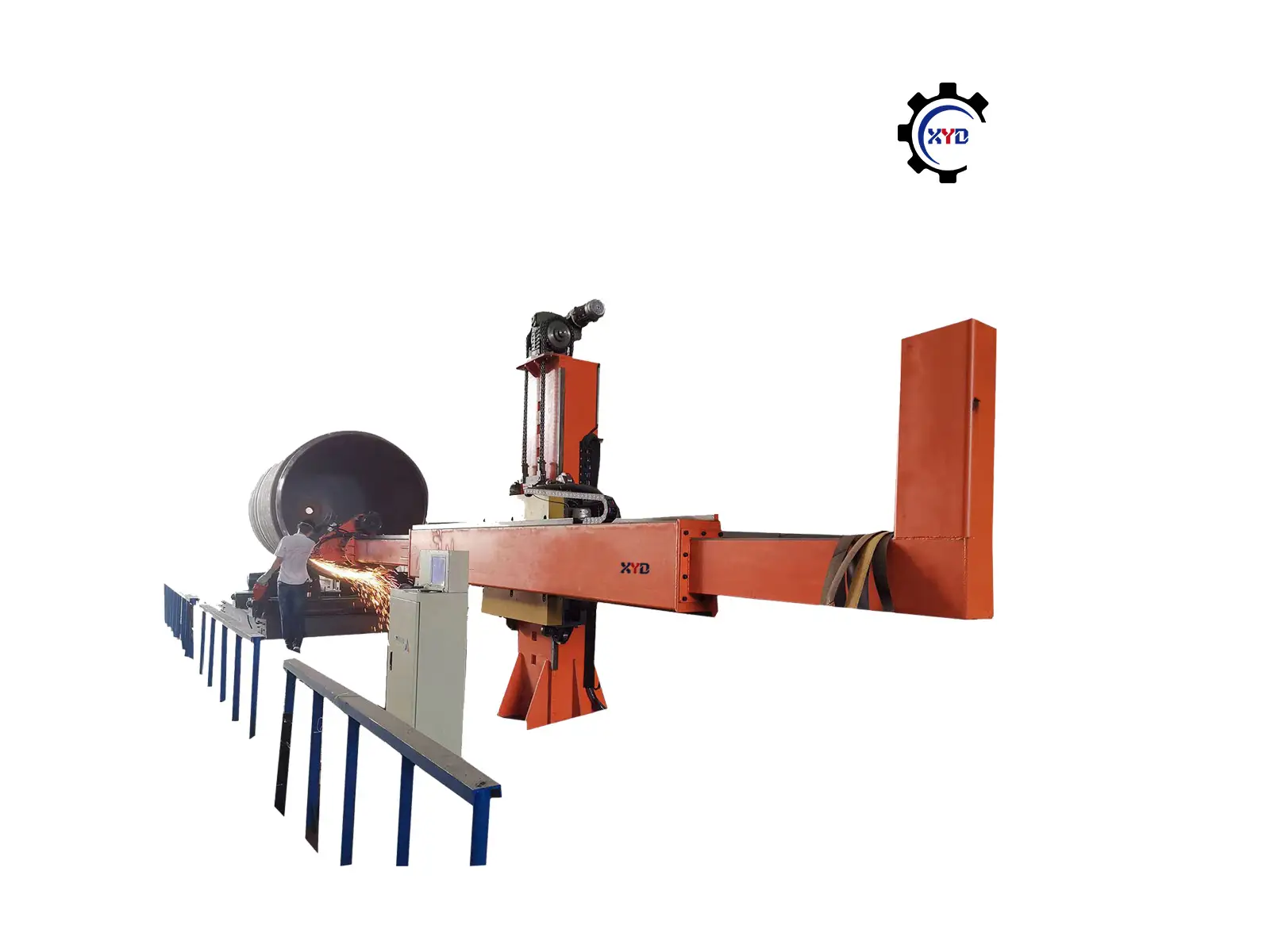

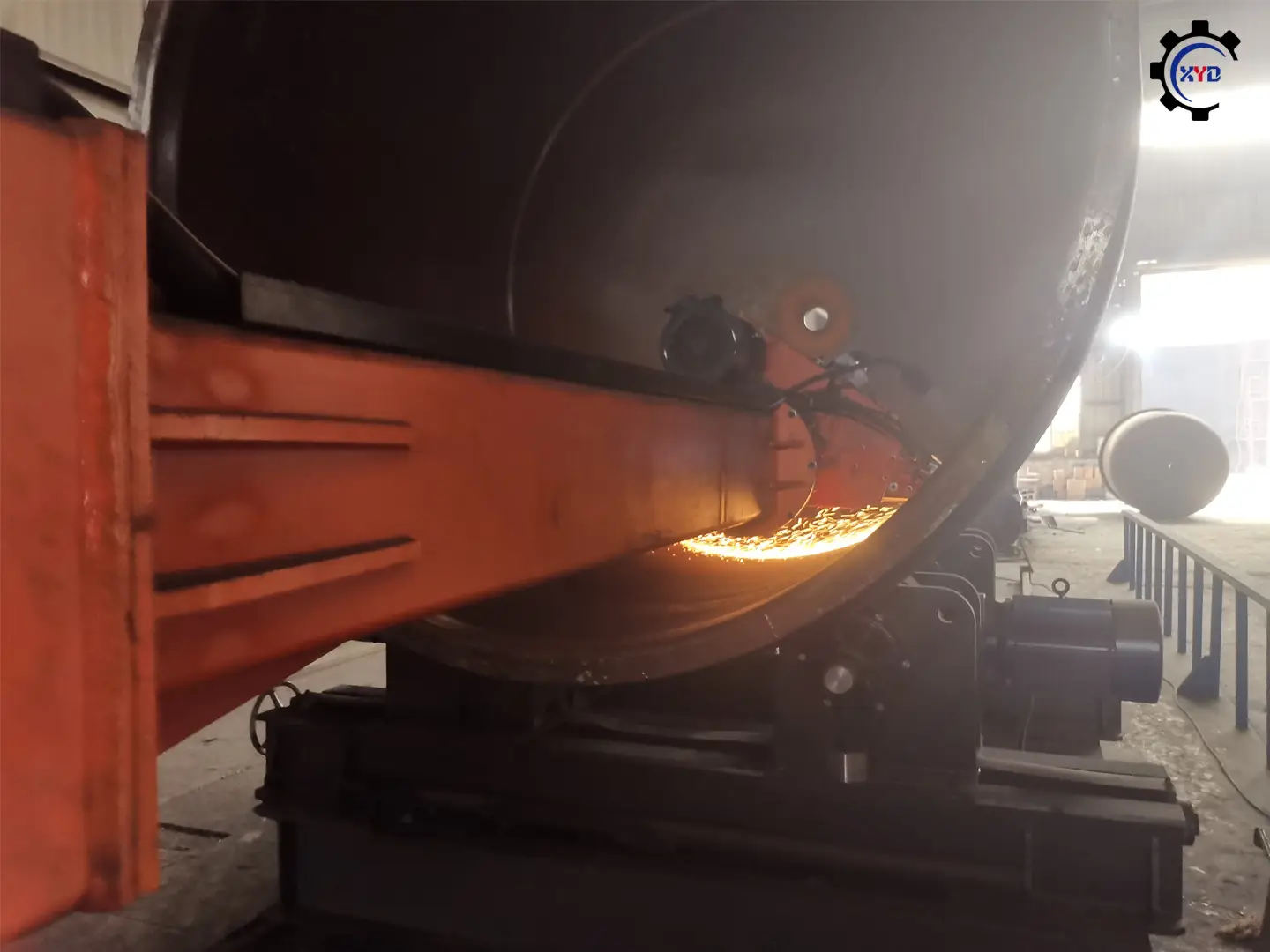

The Vertical Vessel Polishing Machine is engineered for internal, external, and weld seam polishing of
upright pressure vessels, including glass-lined reactors, enamel tanks, and
stainless steel vessels. Covering φ1500–3500mm diameter and up to 4000mm in height,
this machine delivers high-efficiency, high-precision polishing with advanced features such as
dual-mode operation, infrared positioning, and wireless control. Ideal for applications in
pharmaceutical, chemical, food, and environmental industries.
2. Key Features
| Feature | Description |
|---|---|
| Full-Coverage Polishing | Inner wall, outer wall, and weld seam polishing in one system |
| Dual Polishing Modes | Switch between circular and vertical polishing with 90° head rotation |
| Smart Monitoring System | Equipped with head-mounted monitor, infrared alignment, and wireless control |
| Dynamic Compensation Unit | 50mm motorized swing system tracks weld seams with precision |
| Enclosed Dust-Control Unit | Transparent view panel + air nozzle for real-time dust blowing |
| Operator-Friendly Design | Wireless remote + emergency stop + industrial-grade locking system |
3. Technical Specifications
| System Module | Specification |
|---|---|
| Applicable Workpiece | Glass-lined / enamel reactors & tanks (interior, exterior, weld seams) |
| Workpiece Size | Diameter: Φ1500–3500mm; Height: ≤4000mm |
| Polishing Method | Abrasive belts, flap wheels, cloth wheels (auto switch) |
| Motion Control | Inverter-driven rotation + flange-mounted swinging arm |
| Tracking Precision | ±50mm motorized weld seam adjustment |
| Observation System | Industrial monitor + infrared calibration + air nozzle blowing system |
| Operation Control | Wireless controller + real-time view + full enclosure safety |
4. Applications & Use Cases
| Industry | Typical Equipment |
|---|---|
| Pharmaceutical | Sterile mixing tanks, clean reactors, GMP vessels |
| Chemical Processing | Glass-lined reactors, anti-corrosion tanks, blending vats |
| Environmental | Clean water processing tanks, chemical storage vessels |
| Food Industry | Fermentation tanks, mixing tanks, high-finish weld seams |
Unique Advantages
- 3-in-1 polishing for inner wall, outer wall & weld seams
- Quick-switch 90° polishing mode (circular & vertical)
- ±50mm weld seam tracking with motorized swing
- Infrared positioning + industrial camera monitoring
- Fully enclosed workspace + effective dust control
