1. Overview

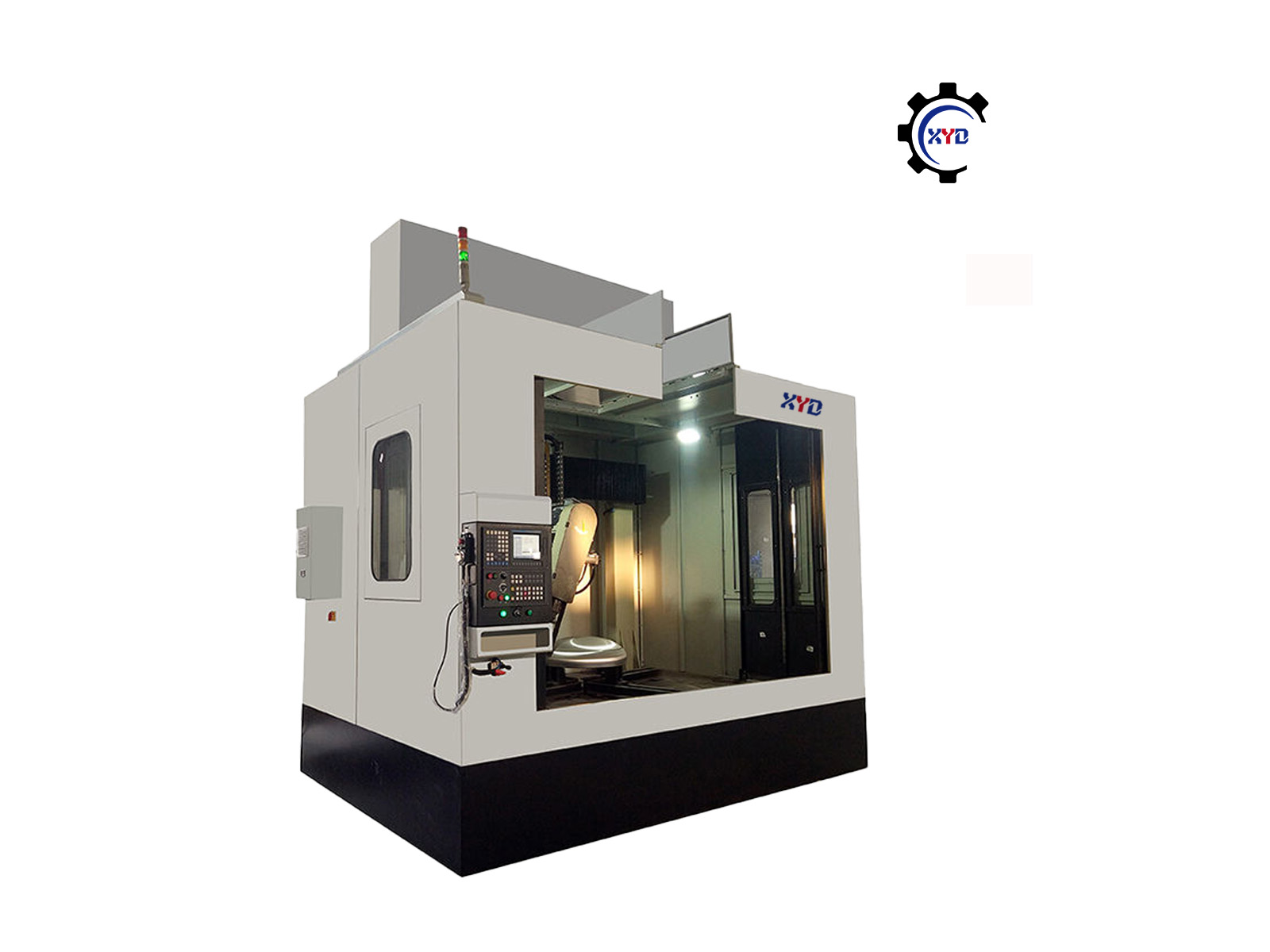

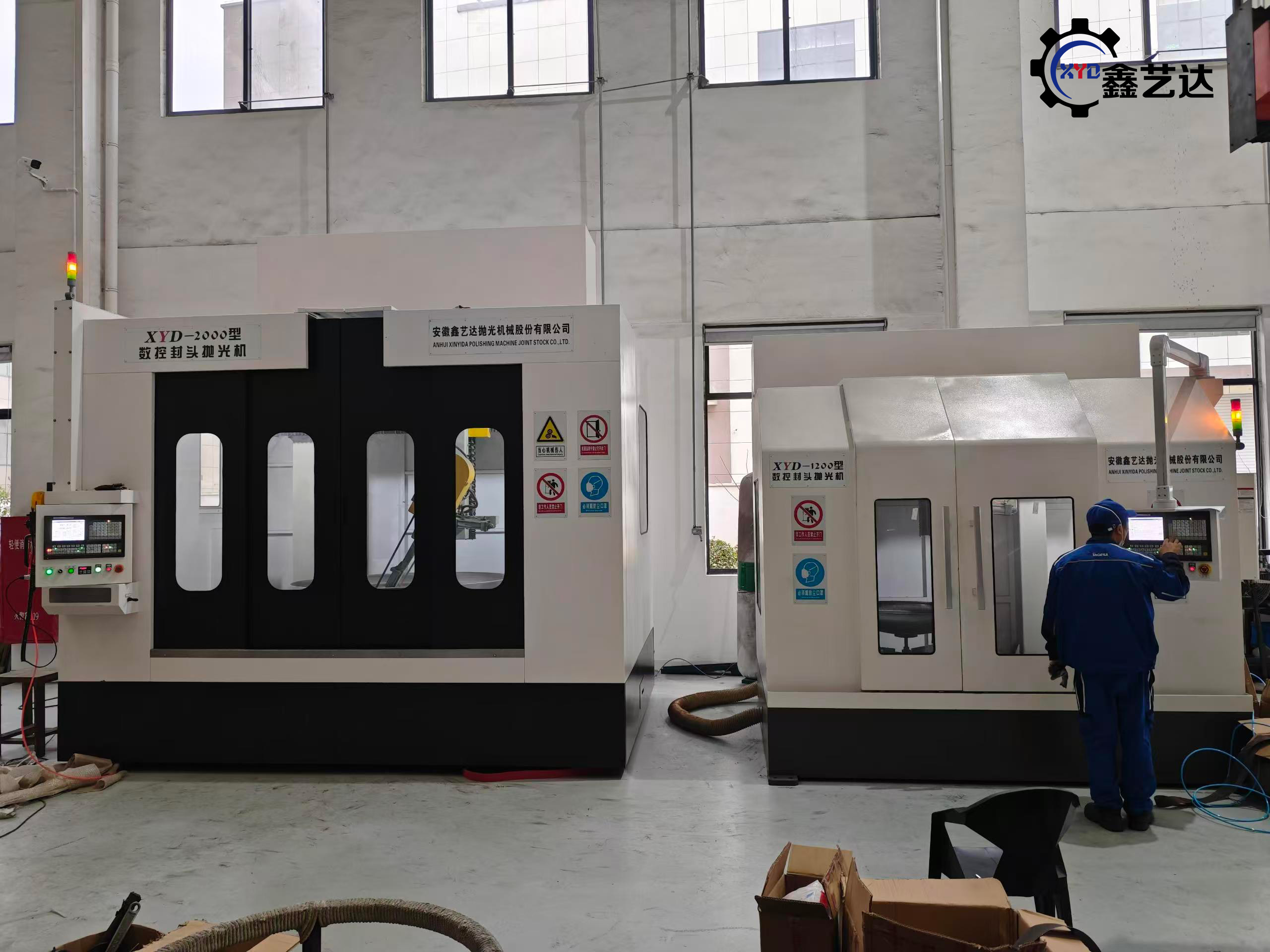

The XYD-CNC (JY-CNC) CNC dished end polishing machine is a fully automatic system
designed for polishing concave metal heads, end caps, and vessel ends
with high efficiency and precision.
Engineered for elliptical surfaces made of stainless steel, carbon steel,
and alloy materials, the machine integrates servo control,
automatic pressure adjustment, pneumatic self-centering clamping,
and a fully enclosed visible safety cover.
It is widely applied in pressure vessel manufacturing,
food-grade tank production, and pharmaceutical equipment finishing,
delivering stable and repeatable high-quality surface results.
2. Product Features
| Feature | Description & Benefits |
|---|---|
| Servo Control System | One-touch operation ensures smooth, consistent, and repeatable polishing results. |
| Intelligent Pressure Control | Imported sensors automatically adjust polishing pressure for optimal surface quality. |
| Pneumatic Auto-Centering | Fast and precise self-centering clamping for complex concave workpieces. |

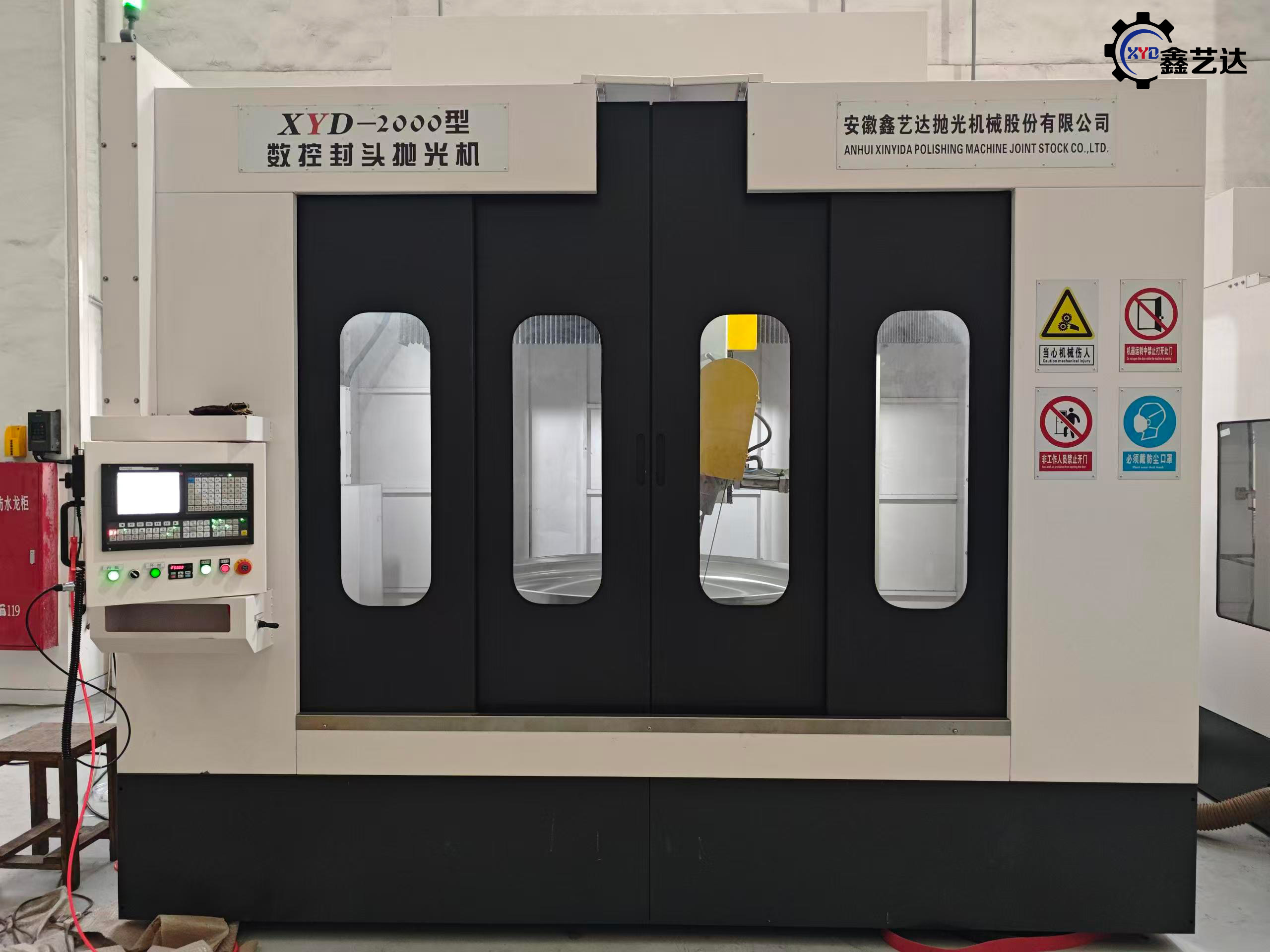

| Fully Enclosed Cover with Window | Provides a safe, dust-free polishing environment with real-time visual monitoring. |
| Optional Dust Collector | Improves workshop cleanliness and supports environmental protection standards. |
3. Technical Specifications
| Specification | Details |
|---|---|
| Model | XYD-CNC (JY-CNC) |
| CNC System | Siemens / HNC / DNV |
| Operation Mode | Fully automatic CNC |
| Travel Stroke | 2000mm (defines maximum polishing diameter) |
| Polishing Motor | 4kW or 5.5kW (Brand: WANNA) |
| Spindle Speed | 2800 RPM high-speed polishing |
| Inverter Brand | ZhongChen / DELTA / DNV |
| Electrical Components | Schneider Electric |
| Polishing Tools | Compatible with replaceable abrasive belts and polishing wheels |
4. Processing Scope & Applications
| Capability | Description |
|---|---|
| Diameter Range | 400–2000mm elliptical concave dished heads |
| Max Workpiece Height | Up to 800mm |
| Suitable Workpieces | Vessel heads, lids, end caps, and round end plates |
| Surface Polishing Area | Inner and outer surfaces of concave heads |
| Surface Finish | Matte / Gloss / Mirror (Ra ≤ 0.2μm) |
| Productivity | 10–12㎡/hour (up to 15㎡/hour) |
| Compared to Traditional | Up to 87% higher productivity (vs. 5–8㎡/hour) |
Application Fields
- Stainless steel tank head polishing
- Food equipment end cap surface finishing
- Pharmaceutical container lid polishing
- Chemical reactor cover surface treatment
- Pressure vessel head grinding and polishing
- End weld seam surface finishing
