Product Overview

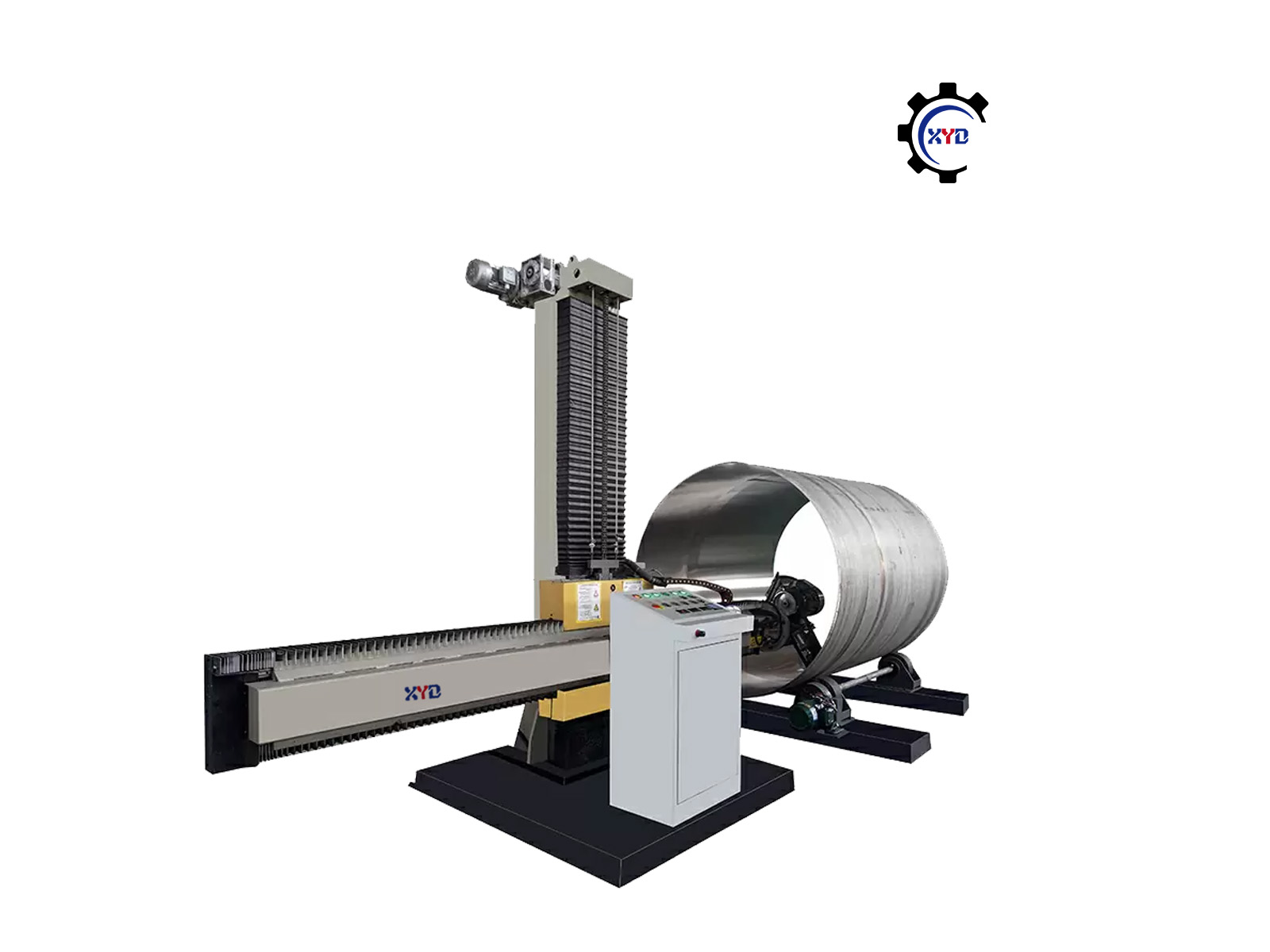

The Xinyida Stainless Steel Tank Surface Polishing Machine (Model: XYD-1HH-3000) is specially designed for tanks and pressure vessels with a diameter of 800mm to 3000mm. It supports semi-automatic grinding and polishing of both the inner and outer surfaces.
By using a combination of multi-stage abrasive belts and polishing wheels, the machine can achieve surface finishes from matte to bright to mirror, with surface roughness Ra controlled below 0.2μm.
Compared to manual polishing, it offers superior consistency, safety, and production efficiency, making it ideal for industries with high cleanliness and finish requirements such as food processing, pharmaceuticals, aerospace, and precision manufacturing.
Product Features
| Feature Category | Description |
|---|---|
| Applicable Range | For tanks φ800–3000mm and heads φ500–3000mm, both inner and outer surface polishing |
| Surface Finish Types | Matte, bright, mirror (multi-stage abrasive belt and cloth wheel combination) |
| Polishing Consistency | Uniform surface treatment, minimizing human variations, Ra < 0.2μm |
| Operation Mode | Semi-automatic structure, reducing repetitive labor and safety risks |
| Electrical Control | 4–5.5kW polishing motor, Schneider Electric + DELTA or Zhongchen inverters, enclosed dust-proof guide rail |
| Workpiece Load Capacity | Roller platform and head turntable support 1–20 tons customization |
| Replaceable Polishing Materials | Supports abrasive belts, nylon wheels, cloth wheels, flap wheels |
Technical Specifications
| Item | Specification |
|---|---|
| Model | XYD-1HH-3000 |
| Operation Mode | Semi-automatic |
| Beam Stroke | 3000 mm |
| Polishing Motor | 4 / 5.5 kW (Brand: WANNA) |
| Electrical Components | Schneider + DELTA / Zhongchen inverter |
| Enclosure | Fully enclosed guide rail dust cover |
| Polishing Efficiency | 10–12 ㎡/hour |
| Tank Diameter Range | 300–3000 mm |
| Max Tank Length | 6000 mm |
| Polishing Area | Outer shell only or inner & outer simultaneous polishing |
Processing Range & Applications
| Workpiece Type | Diameter Range | Max Length | Max Load | Application Industries |
|---|---|---|---|---|
| Tank | 800–3000 mm | 6000 mm | 1–20 tons | Food processing, pharmaceutical equipment, chemical containers, stainless steel tank manufacturing |
