1. Product Overview

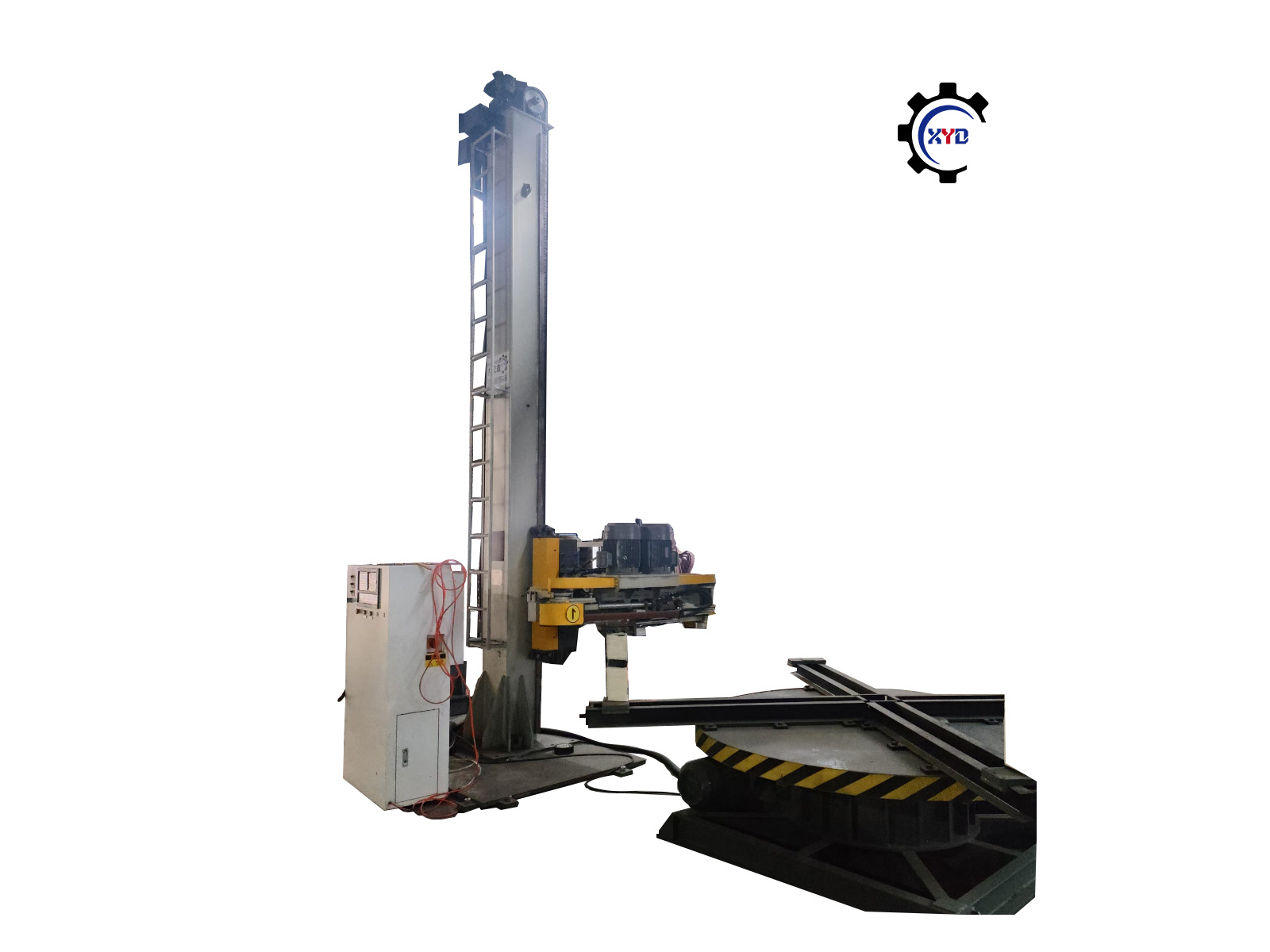

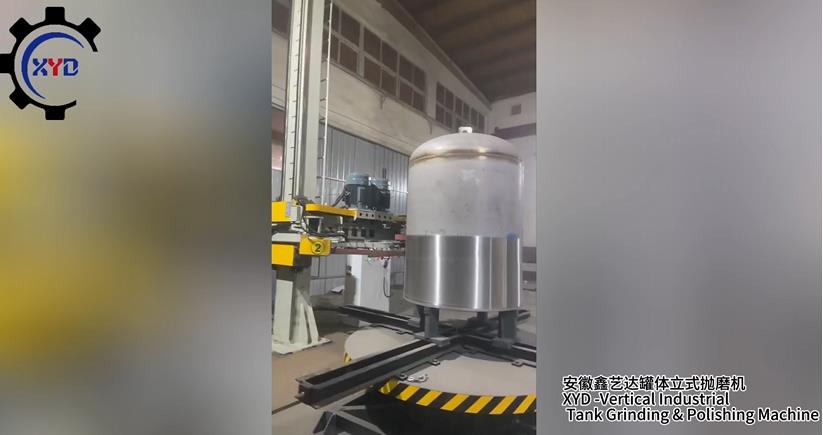

The XYD-CZJ2 Vertical Tank Polishing & Grinding Machine
is developed by Anhui Xinyida Polishing Machinery Co., Ltd.
It is specially designed for vertical polishing, grinding, and finishing
of medium-to-large stainless-steel tanks.
Equipped with dual polishing heads with interchangeable abrasive belts and flap wheels,
and servo-controlled beam movement, this machine ensures efficient, stable,
and precise surface finishing.
It is widely used in food, beverage, pharmaceutical, chemical, and energy industries.
2. Key Features
| Category | Description |
|---|---|
| High Load Capacity | Supports up to 8 tons, suitable for large and heavy tanks. |
| Dual Polishing Heads | Two polishing heads with quick-change abrasive belts and flap wheels for rough to fine finishing. |
| Precision Control | Beam movement (up/down, left/right) is servo-controlled for high accuracy. |
| Powerful Drive | Equipped with Ø800 rotary gear ring and 5.5kW vertical 4-pole motor for stable rotation of large tanks. |
| Smart Programming | Fitted with GuGe 218TEc dual-axis CNC system, supports secondary programming. |
| Auxiliary Cooling | Water spray and mist device reduces workpiece temperature and improves polishing quality. |
3. Technical Specifications
| Item | Specification |
|---|---|
| Workpiece Diameter | 1–3 m |
| Max Workpiece Height | 4 m |
| Max Load Capacity | 8 tons |
| Polishing Heads | 2 sets (interchangeable abrasive belts / flap wheels) |
| Motor Power | 5.5 kW vertical 4-pole motor |
| Rotary System | Ø800 rotary gear ring |
| Abrasive Belt Size | 2540 mm |
| CNC System | GuGe 218TEc dual-axis, supports re-programming |
| Beam Control | Servo-controlled up/down, left/right movement |
| Additional Device | Water spray & mist system |
4. Processing Scope
- Workpiece diameter: 1–3 m
- Workpiece height: up to 4 m
- Workpiece weight: ≤8 tons
- Processing: weld seam grinding, abrasive belt polishing, flap wheel finishing
- Suitable for: stainless steel tanks, storage tanks, fermentation tanks, reactors
5. Application Fields
- Food & Beverage: beer tanks, dairy tanks, beverage containers
- Pharmaceutical: sterile reactors, water storage tanks
- Chemical Industry: corrosion-resistant storage tanks, chemical vessels
- New Energy: hydrogen storage tanks, LNG containers
- Purification Equipment: pure water tanks, clean containers
