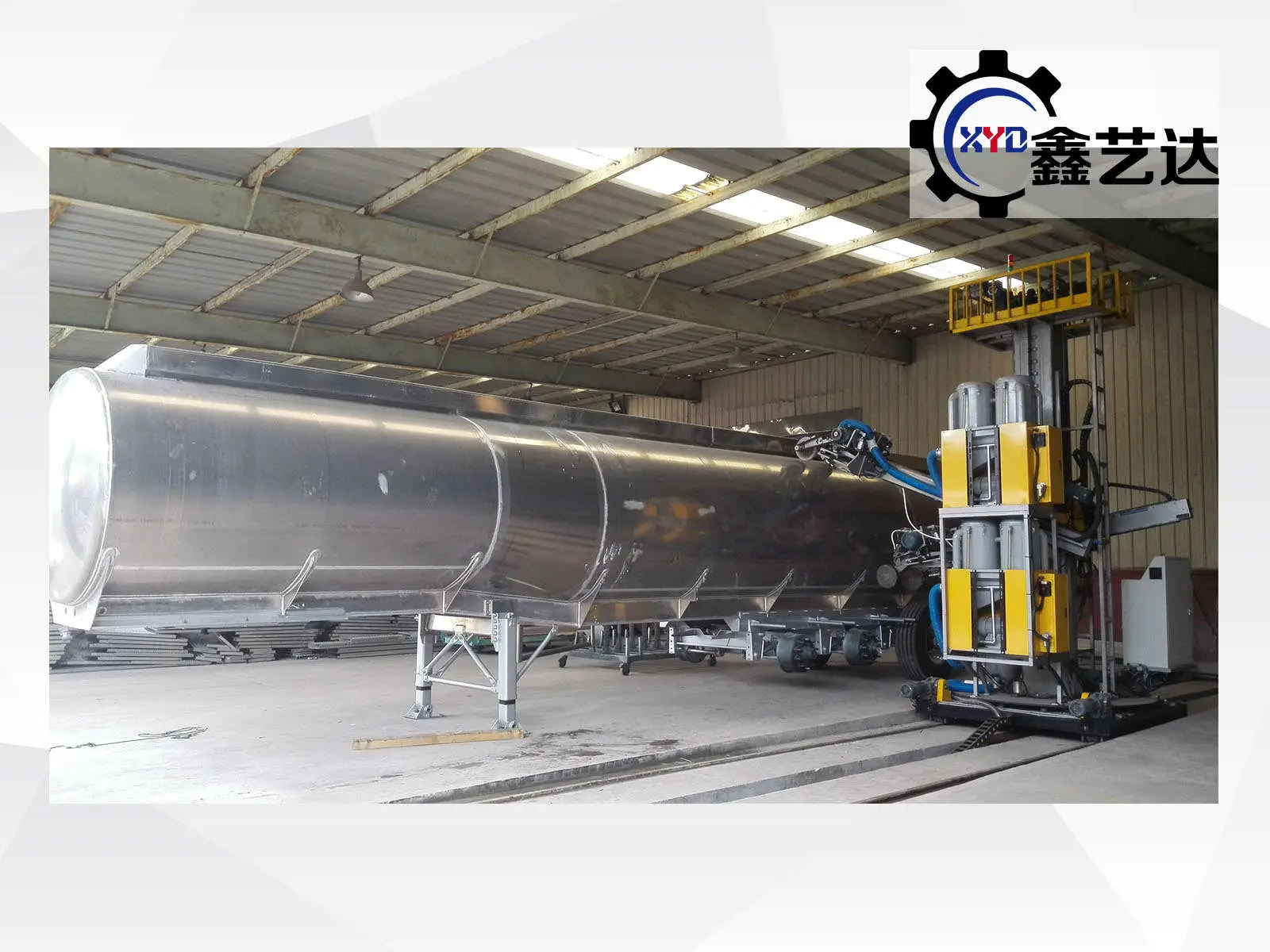

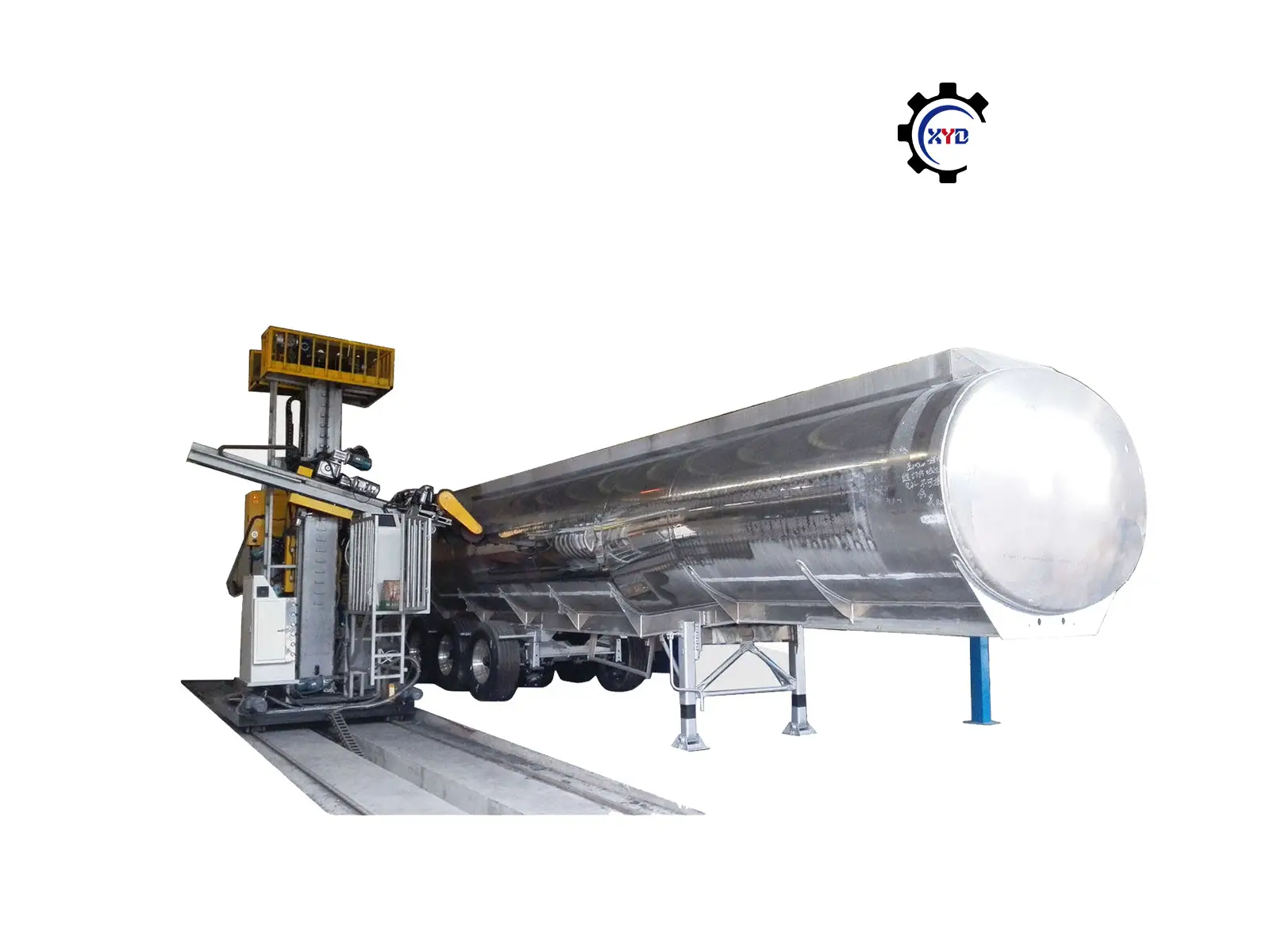

1. Product Overview
The cylinder polishing machine is an advanced automatic polishing equipment designed for stainless steel tanks,
tank trucks, and pressure vessels. Equipped with a dual servo head system, intelligent constant-pressure control,
and an automatic waxing device, it ensures efficient, stable, and precise polishing performance.
Compared with manual polishing, it significantly improves productivity, reduces labor costs, and enhances workplace safety.
It is widely used in food, pharmaceutical, chemical, new energy, and water treatment industries.
2. Product Features
- Dual Servo Head System: Continuous grinding and polishing in one pass, efficiency increased by 30%+
- Intelligent Pressure Control: Imported sensors maintain constant head pressure without manual adjustment
- Adaptive Processing: Compatible with different tank sizes and shapes for batch polishing
- Automatic Waxing Device: Precise wax supply for both sisal and cloth buffing wheels
- Swing Polishing Head: Cam swing mechanism (10–20mm) improves surface uniformity and finish
- High-Efficiency Dust Collection: Dust absorption rate ≥85%, ensuring clean and safe working conditions
3. Technical Parameters
| Item | Specification |
|---|---|
| Dimensions | 3200 × 2000 × 4500 mm (L × W × H) |
| Total Weight | 3200 kg |
| Total Power | 30 kW |
| Processing Accuracy | Ra ≤ 0.8 – 1.6 μm (progressive polishing) |
| Beam Travel | Effective 1.5 m / Total length 3 m |
| Rail System | 22 kg/m light rail (GB11264-89 standard) |
| Trolley Drive | Braking variable-speed motor, multi-directional travel |
4. Processing Scope & Applications
Processing Scope: Suitable for outer surface polishing of cylinder tanks, tank trucks,
and various stainless-steel pressure vessels in batch production.
Application Fields:
- Food & Beverage: beer fermenters, dairy storage tanks
- Pharmaceutical & Chemical: reactors, chemical storage tanks
- New Energy: LNG storage tanks, energy equipment weld polishing
- Water Treatment: pure water tanks, purification systems
- Advanced Manufacturing: military equipment and mirror-finish precision vessels
