1. Overview

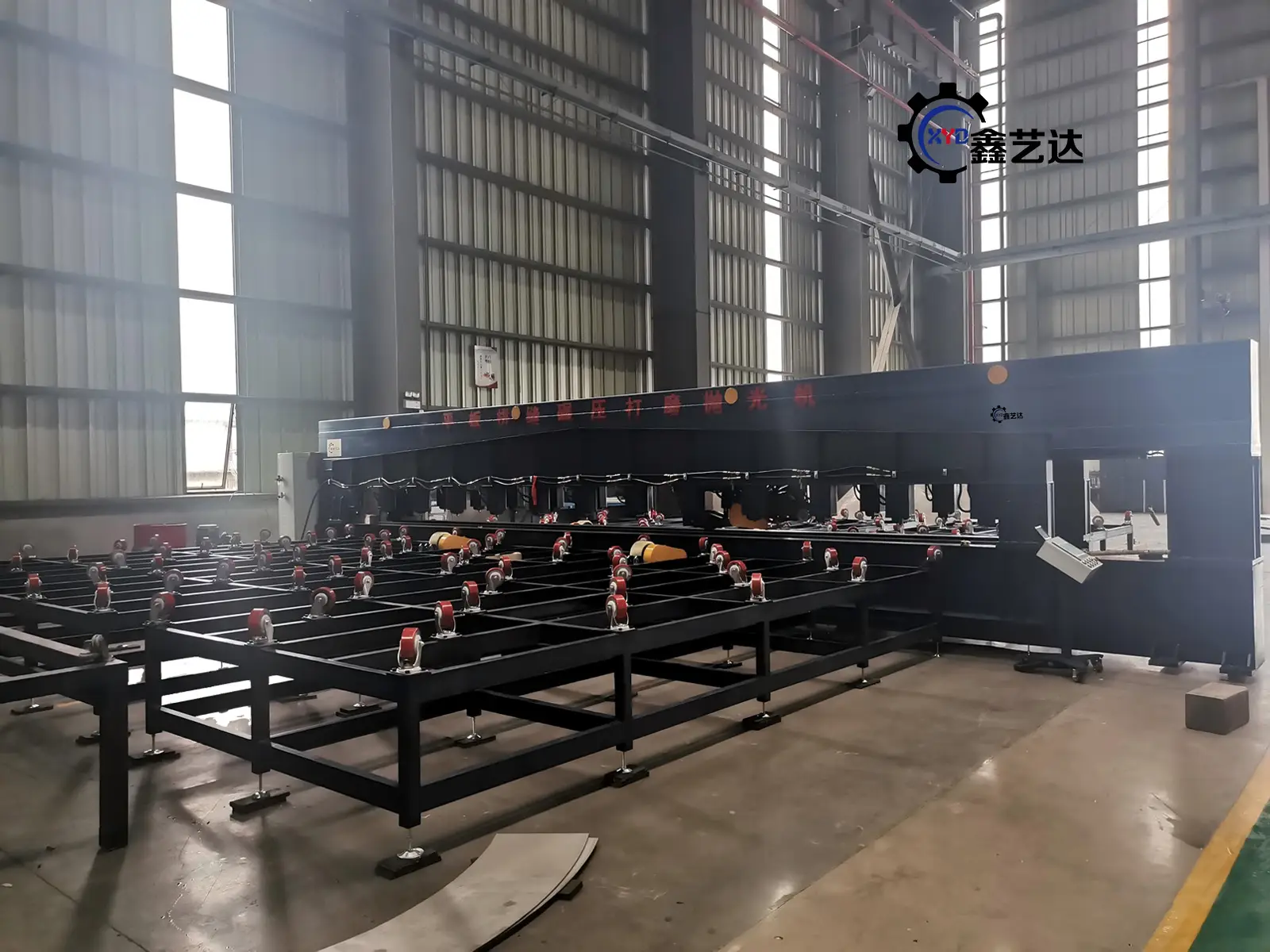

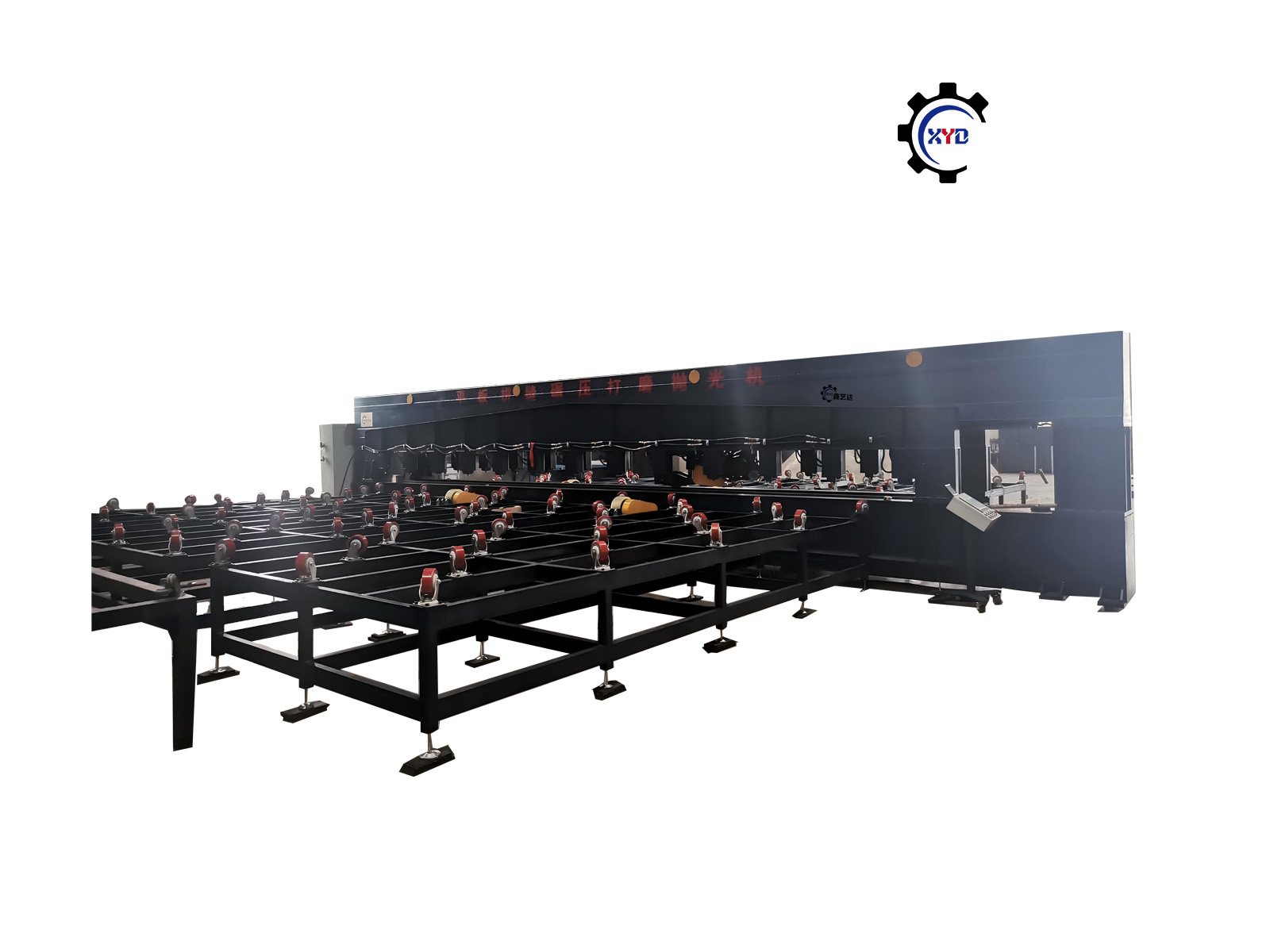

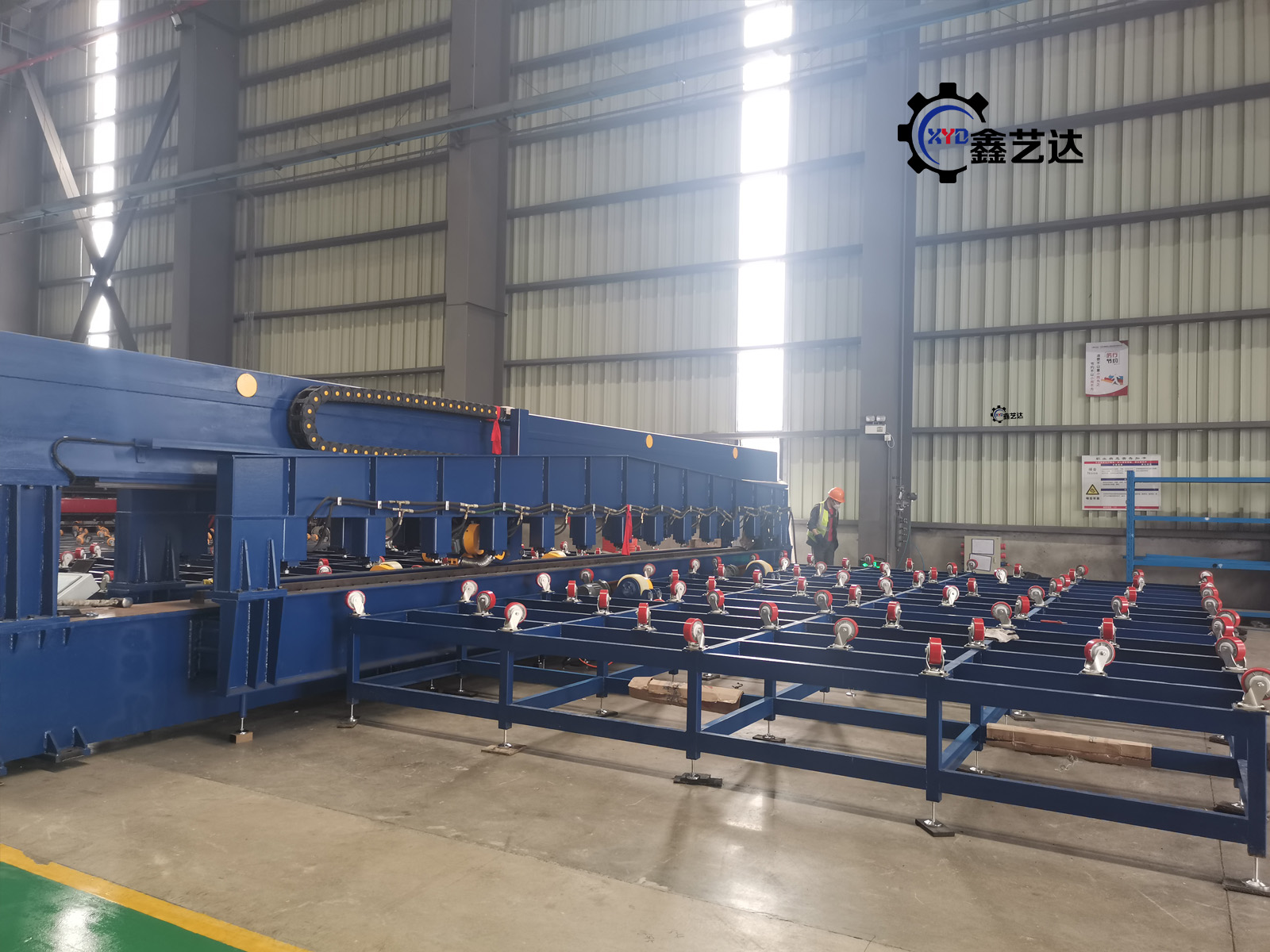

The 12m Plate Seam Grinding and Polishing Machine is a custom-designed, high-performance solution for large stainless-steel plate surface treatment. It is mainly used for grinding and polishing welded seams of stainless-steel plates, ensuring superior surface quality with surface roughness values between Ra 3.2 – 0.6 μm.
2. Key Features
| Feature | Description |
|---|---|
| Large Processing Capacity | Effective working size up to 12 meters, with precision error ≤3mm |
| High Surface Quality | Achieves Ra 3.2–0.6 μm surface roughness |
| Automation System | Equipped with motorized feeding and discharging platform for high efficiency |
| Eco-Friendly Design | Integrated dust collection pipes with matching dust removal system |
| Stable Clamping | Pneumatic or hydraulic clamping device prevents workpiece displacement |
| Premium Components | Core parts sourced from international brands such as Siemens, Schneider, Tailong, and Wazhou |
3. Technical Parameters
| Item | Specification |
|---|---|
| Workpiece Material | Stainless Steel |
| Max Processing Size | 12000mm |
| Surface Roughness | Ra 3.2–0.6 μm |
| Platform Size | 12000 × 10000 mm |
| Working Height | 540mm (customizable) |
| Dust Removal | Pipe system + dust collector |
| Clamping System | Pneumatic / Hydraulic |
| Electrical Components | Siemens, Schneider |
| Gear Reducer | Jiangsu Tailong |
| Bearings | Wazhou, Harbin, Luoyang |
4. Applications
| Application Area | Description |
|---|---|
| Stainless-Steel Plate Processing | Seam grinding and polishing for 12m-long stainless-steel plates |
| Engineering Equipment Manufacturing | Surface treatment of large structural components |
| Pressure Vessel Industry | Surface finishing of welded plate assemblies |
| Shipbuilding & Energy Sector | Large stainless-steel plate weld seam polishing |
