1. Product Overview

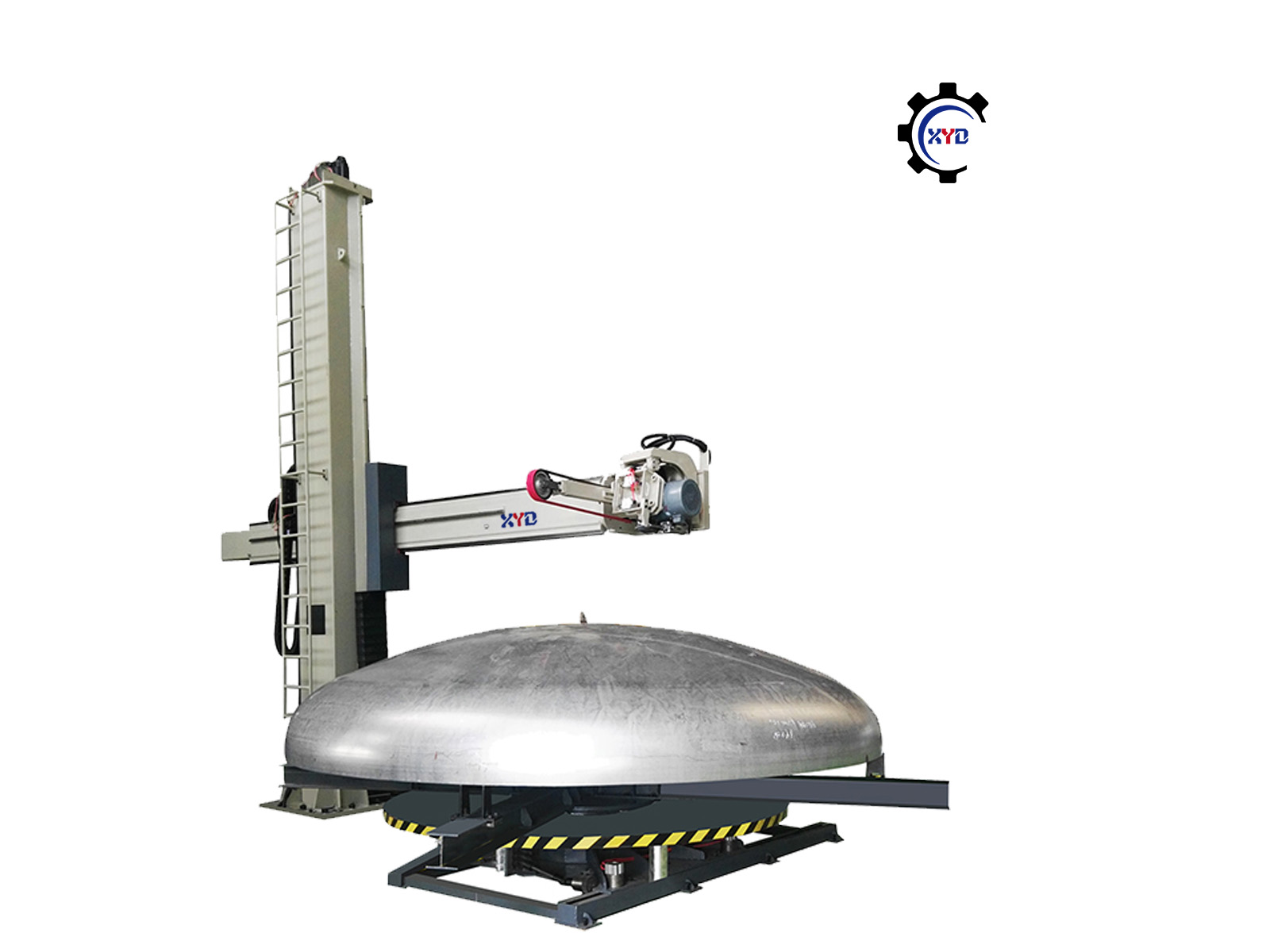

The XYD-2 Dished Head Polishing Machine is designed and manufactured by
XINYIDA Polishing Machine. It is engineered for polishing both the
inside and outside surfaces of stainless steel dished ends and pressure vessels,
with diameters ranging from φ400mm to 3000mm.
This semi-automatic machine offers flexibility through the
interchangeable use of abrasive belts and polishing wheels,
enabling finishes from matte to bright to mirror (Ra ≤ 0.2μm).
It improves productivity, ensures consistent surface quality, and meets sanitary surface standards.
An optional heavy-duty turntable supports loads up to 20 tons,
making it suitable for large industrial applications.
2. Key Features
| Feature | Highlights |
|---|---|
| CNC-Controlled Beam | Ensures accurate polishing trajectory and uniform surface texture |
| Inner & Outer Surface Polishing | One machine for both internal and external polishing |
| Belt & Wheel Compatibility | Adjustable for matte, bright, and mirror finishes |
| High Reflective Finish | Achievable surface roughness up to Ra ≤ 0.2μm |
| Efficient Operation | Polishing efficiency up to 10–12㎡/hour |
| Optional Turntable | Load capacity up to 20 tons for large dished ends |
3. Technical Specifications
| Item | Specification |
|---|---|
| Model | XYD-2 |
| Working Mode | Fully Automatic |
| Beam Stroke | 3000mm (defines polishing diameter) |
| Polishing Method | Interchangeable abrasive belts and polishing wheels |
| Motor Power | 4kW / 5.5kW (Brand: WANNA) |
| VFD Brand | Zhongchen / DELTA |
| Electrical Components | Schneider |
| Dished End Diameter | 400–3000mm |
| Dished End Height | Max. 800mm |
| Finish Type | Matte / Bright / Mirror |
| Surface Roughness | Ra ≤ 0.2μm |
| Efficiency | 10–12㎡/hour |
4. Application Scope & Industries
Suitable Workpieces:
- Stainless steel dished ends
- Pressure vessel heads
- End caps for chemical and food tanks
- Sanitary-grade metal components
Target Industries:
- Food-grade container manufacturing
- Pharmaceutical processing equipment
- Pressure vessel production
- Precision chemical tank manufacturing
- Polishing workshops with hygiene requirements
