1. Product Overview

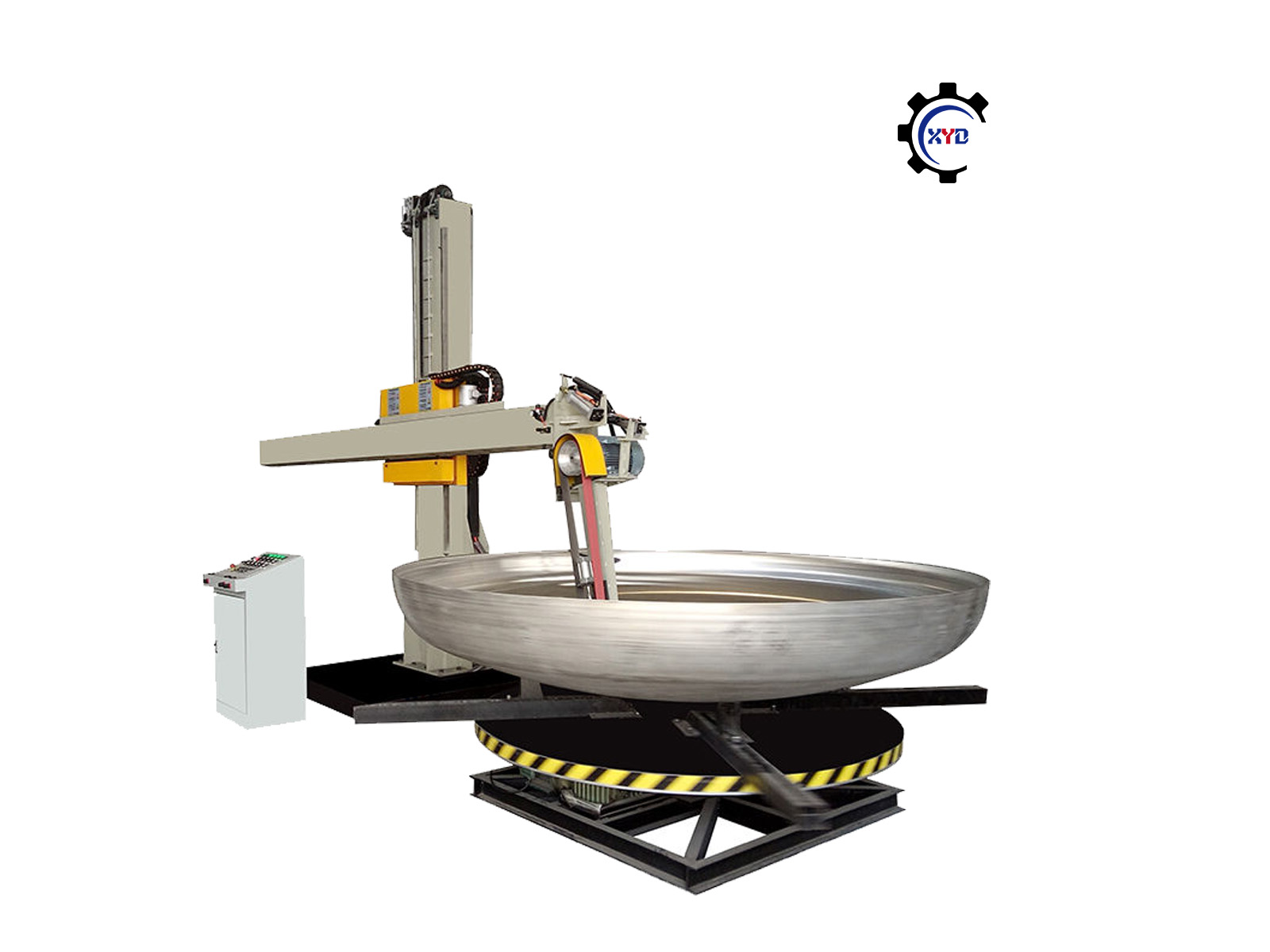

The XYD-2 CNC Dish Head Grinding & Polishing Machine from Xinyida is designed for high-precision polishing of stainless steel
cylinders, cones, and dish heads, covering both internal and external surfaces.
It is especially suitable for pressure vessel and sanitary-grade applications.
The complete machine consists of a cross-beam main unit, polishing head assembly, cooling circulation system,
electric control panel, pneumatic components, and a heavy-duty workpiece turntable.
The CNC system drives the beam and column to move horizontally and vertically, guiding the grinding head to accurately
follow the curvature of the workpiece. Combined with servo-controlled spindle rotation,
this ensures excellent surface conformity and stable, consistent polishing results.
2. Key Features
| Feature | Description |
|---|---|
| CNC Contour-Following | Grinding head automatically follows the surface curvature |
| Flexible Polishing System | Interchangeable abrasive belts and polishing wheels |
| Internal & External Buffing | Internal and external polishing completed in a single setup |
| Heavy-Duty Turntable | Supports heavy workpieces with smooth and stable rotation |
| Automatic Cooling System | Improves polishing performance and surface finish consistency |
| Branded Electrical Parts | Motor: WANNA · VFD: DELTA / Zhongchen · Electrical components: Schneider |
3. Technical Specifications
| Item | Specification |
|---|---|
| Model | XYD-2 |
| Operation Mode | Semi-automatic CNC |
| Beam Travel Stroke | 3500mm (defines maximum polishing diameter) |
| Polishing Motor | 4kW or 5.5kW (WANNA) |
| Polishing System | Abrasive belt & polishing wheel exchangeable |
| VFD Brand | Zhongchen / DELTA |
| Electrical Brand | Schneider |
| Dish Head Diameter | φ400mm – 3000mm |
| Dish Head Height | Max. 800mm |
| Workpiece Load | Optional heavy-duty turntable available |
| Polishing Efficiency | 10–12㎡ / hour |
| Surface Finish Quality | Matte / Bright / Mirror finish (Ra ≤ 0.2μm) |
4. Application Scope & Industries
Applicable Workpieces
- Stainless steel dish heads (cylindrical, elliptical, conical)
- Pressure vessel end caps and shells
- Storage tanks and sanitary-grade containers
- High-hygiene internal and external metal surfaces
Target Industries
- Pharmaceutical equipment manufacturing
- Food-grade stainless steel processing
- Pressure vessel and chemical tank production
- Sanitary pipeline systems and OEM polishing services
- High-quality metal shell and container finishing
