1. Product Overview

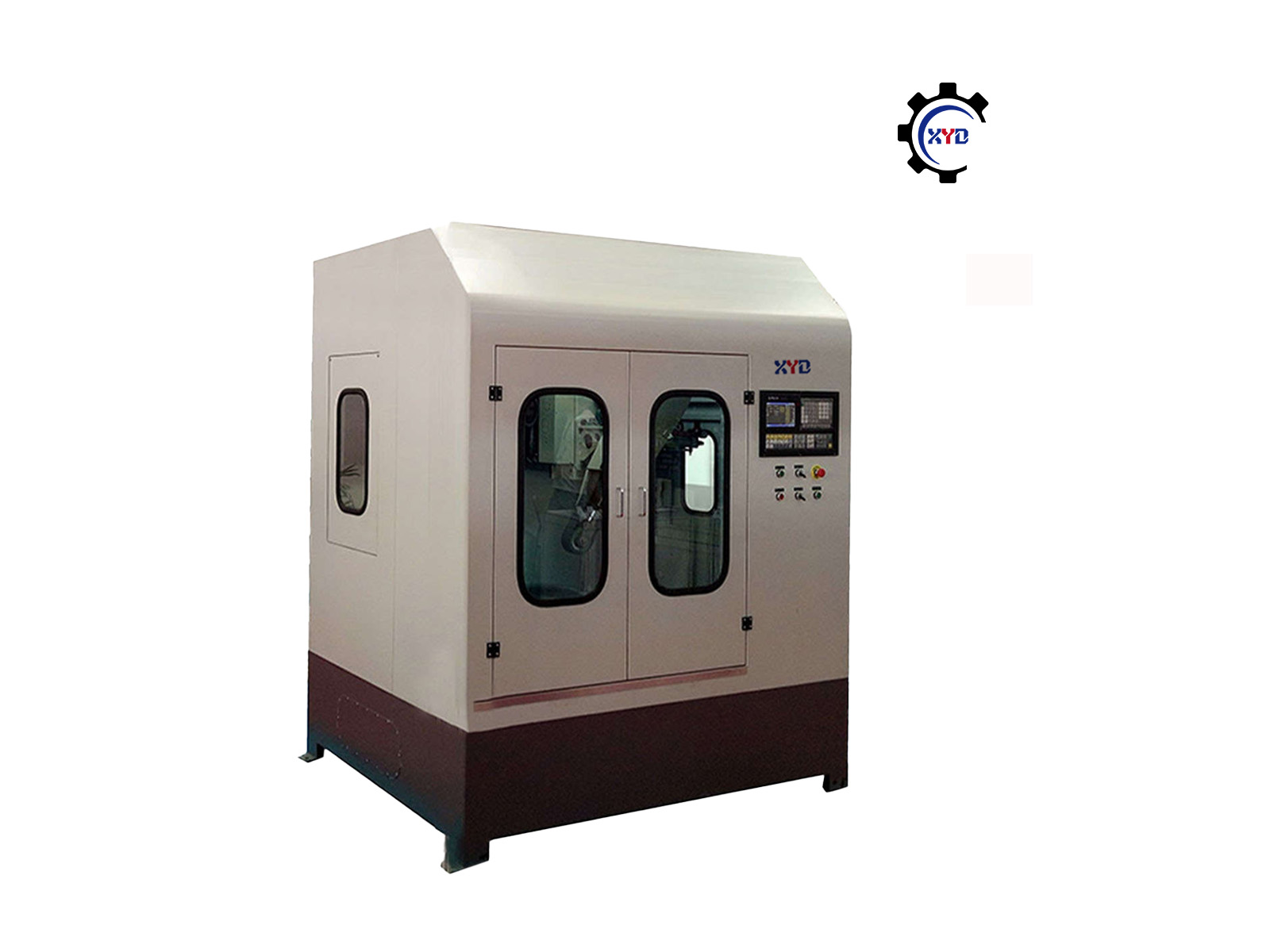

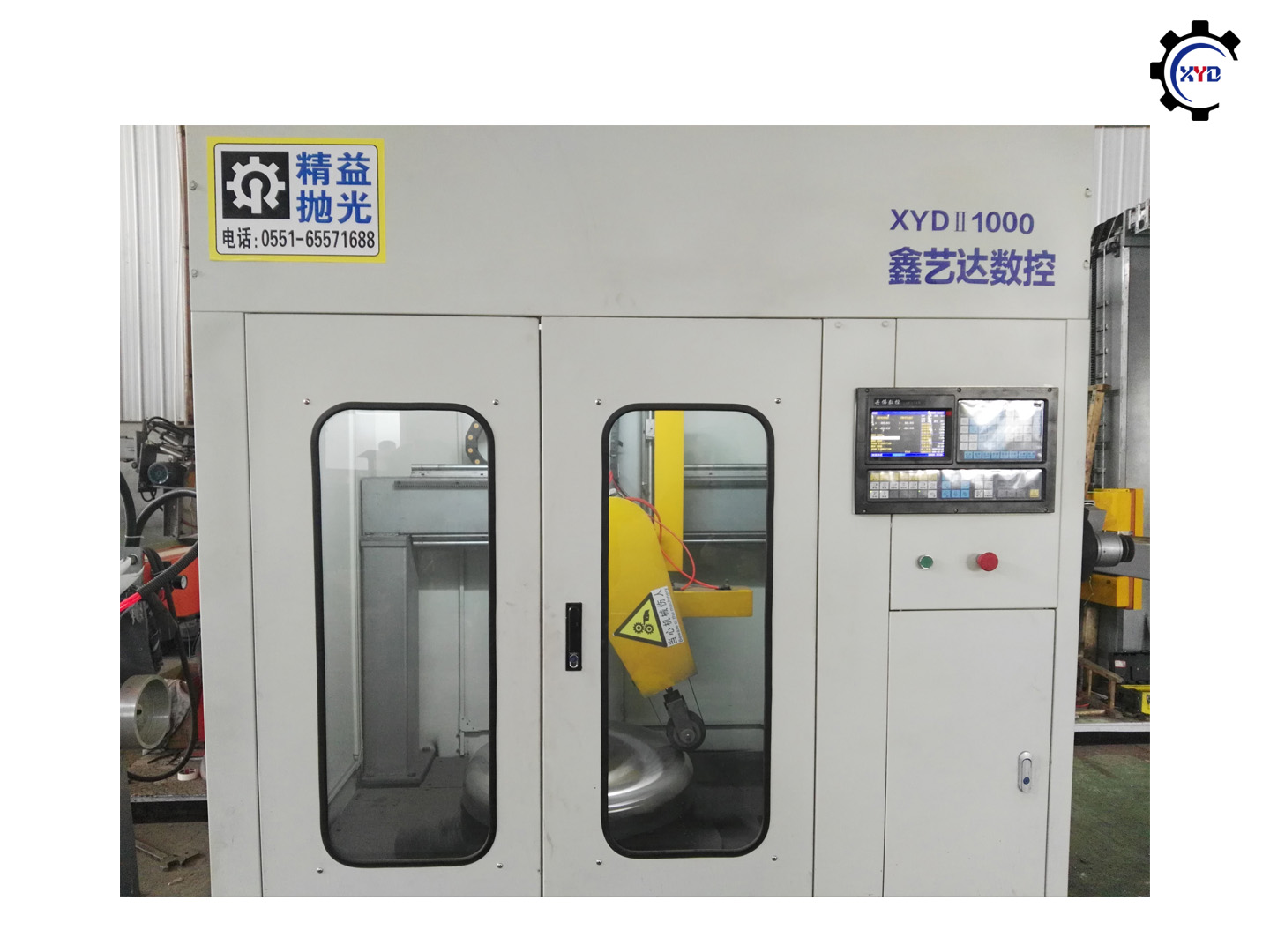

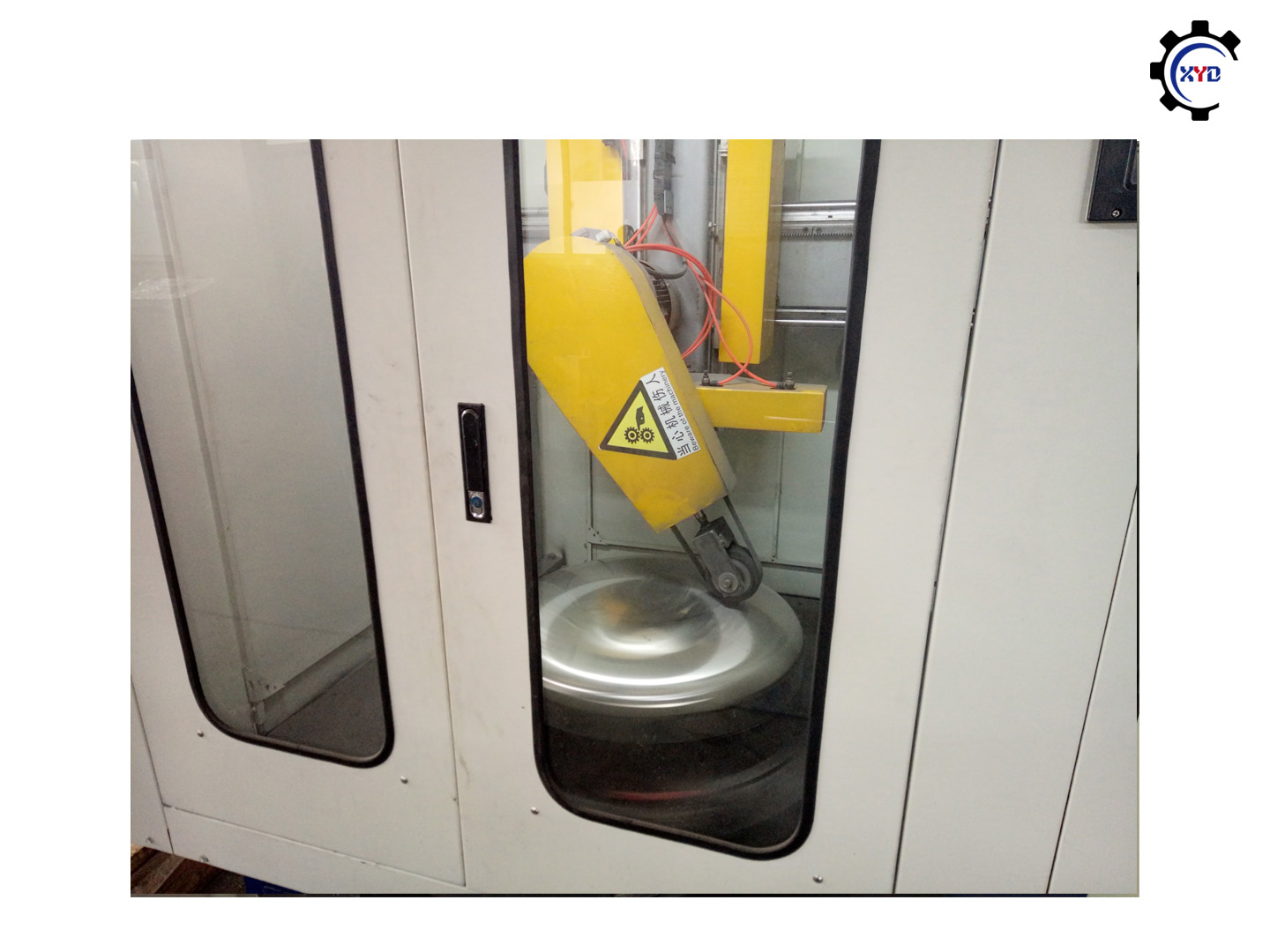

The 1-meter CNC dished end polishing machine is engineered for precise surface finishing of elliptical heads, concave ends, and stainless steel components.
With servo-driven automation, constant pressure polishing, and optional dust collection, it provides a highly efficient, safe, and environmentally compliant solution.
This fully automatic machine is ideal for small to medium-sized workpieces in industries such as pressure vessels, precision metal processing, and pharmaceutical manufacturing.
2. Key Features
| Feature | Advantage |
|---|---|
| Servo Automatic Control | One-touch operation, high response speed, stable system |
| Intelligent Constant Pressure | Imported pressure sensor for real-time adjustment and consistent polishing force |
| Pneumatic Auto-Centering Clamping | Rapid positioning with minimal manual input |
| Fully Enclosed + Visual Window | Ensures safety, dust-proof operation, and real-time monitoring |
| Optional Dust Collection | Complies with environmental standards, ideal for cleanroom needs |
3. Technical Specifications
| Item | Value |
|---|---|
| Model | XYD-CNC (JY-CNC) |
| CNC System | Siemens / Huazhong / Delta |
| Working Mode | Full-Automatic |
| Travel Distance | 1200 mm (max polishing diameter) |
| Polishing Motor | 4 kW or 5.5 kW (Brand: WANNA) |
| Inverter Brand | Zhongchen / DELTA / Danfoss |
| Electrical Components | Schneider Electric |
| Polishing Options | Interchangeable belts and wheels |
| Spindle Speed | 2800 RPM |
| Polishing Efficiency | 10–12 ㎡/h (up to 15 ㎡/h) |
| Workpiece Size | Elliptical ends 400–2000 mm diameter, height up to 800 mm |
4. Working Range & Applications
Supported Workpieces:
- Elliptical ends, outer and inner concave surfaces
- Matte, glossy, and mirror finish available
- Custom weight-bearing options
Industry Applications:
- Polishing of stainless steel pressure vessels
- Food and pharmaceutical-grade surface finishing
- Precision metal component polishing
- Smoothing of welds in chemical equipment
